Feature:
- Brand new and high quality
- Made of high quality materials, durable
- PVC cover, flame retardant sleeve for FOR Anderson enclosure,
-
This cover prevents dust and moisture from entering the back of the
connector. It also acts as a good finger grip to aid in removal.
- It will make your connectors look neat and add strain relief protection to your cables
- Quick connection and disconnection, simple and safe;
- Silver-plated, high current working environment, reduce contact with sparks;
- Interchangeable plugs of the same type, without male and female design, which is conducive to reducing inventory;
- Multi-color options for the shell, separate excuses for different colors, user-friendly multi-pole configuration;
-
Can be applied to electric power, electric vehicles, solar energy
systems, cruise ships, electric forklifts, construction machinery.
Specification:
- Material: Polycarbonate (PC) shell, stainless steel shrapnel, copper
- Color: red and black
- Dimensions: 2.5x0.7x0.6cm

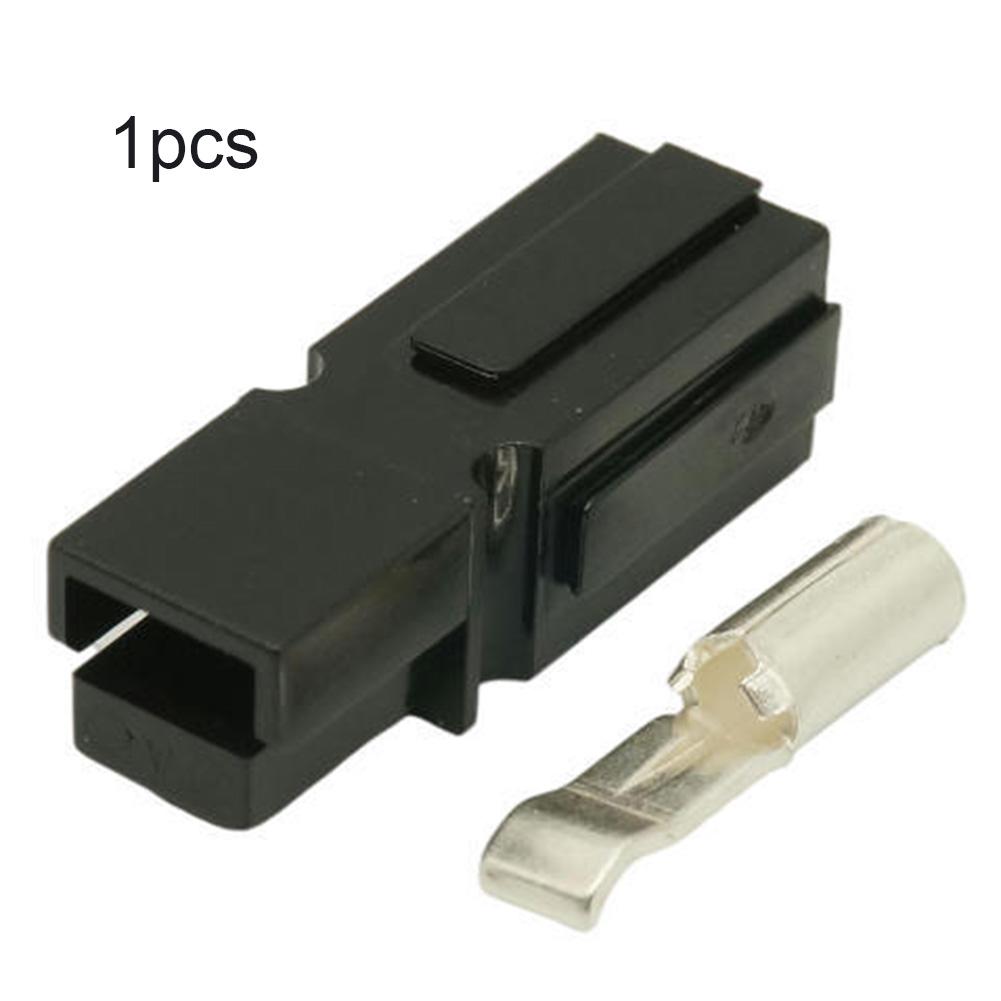

- Quantity: 1pcs
- Current: 30A
- Rated voltage: 600V
- Interface mode: plug and unplug
- Working frequency: high frequency
- Wiring size (AWG): 16/20-10/12AWG (0.52/1.3mm2-3.3/5.3mm ²)
- Average contact resistance: 0.6m Ω
- Withstand voltage: 2200V (DC)
- Insulation resistance: 500M Ω
- A. No load (Contact/Disconnect Cycles)
- B. With load (hot plug times @ 120v) Under Load (Hot Plug 250 cycles@120V ) To10,00030A
- Average plugging force: 26N
- Fire rating of rubber shell: UL94 V-0
- Operating temperature: - 20 ° to 105
- Contact material: silver plated copper
- Locking force between terminal and rubber case: 90N

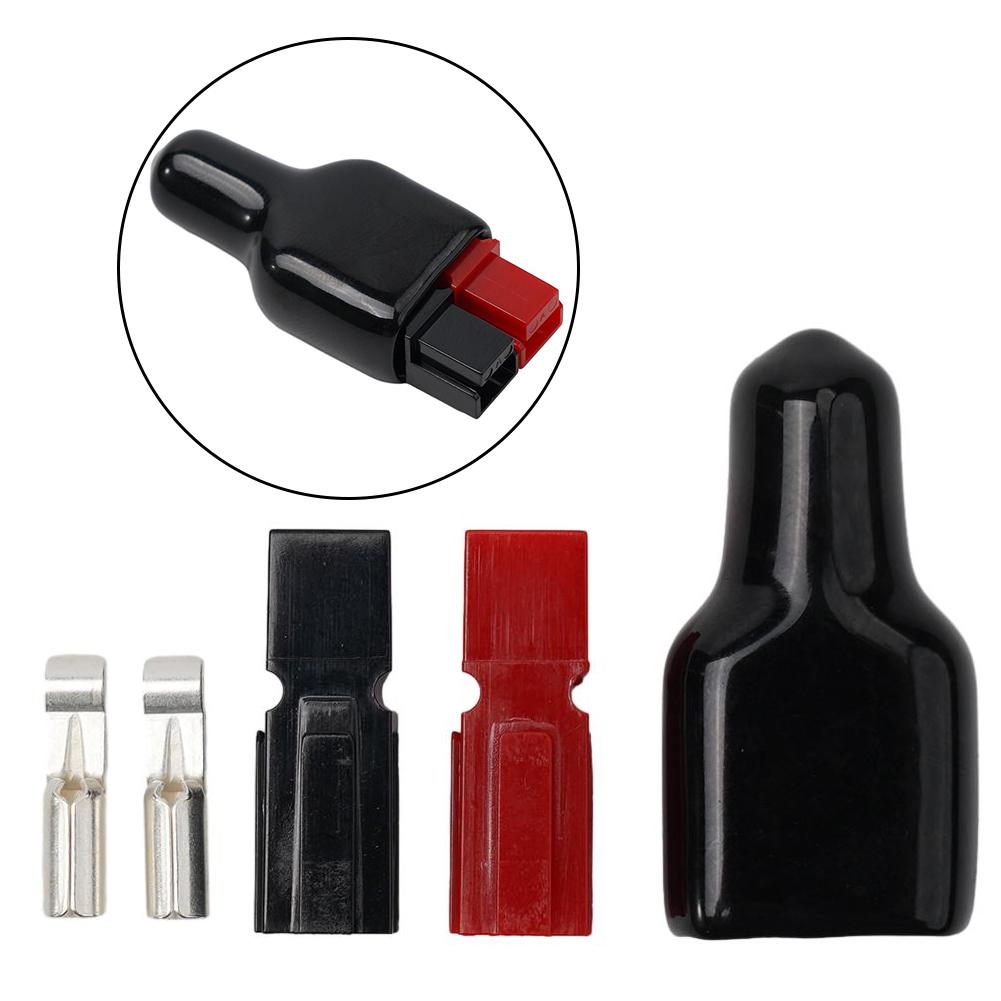

Package includes:
1*30 amp red plug
1*30 amp black plug
2*Terminal
1*Dust Cover
Notes:
1.
Due to various factors such as display brightness and light brightness,
the actual color of the product may be slightly different from the
website picture.
2. Please allow a slight deviation between the data and the manual measurement.
