Feature:
1. [LCD Screen] With 7 inch color LCD screen, 800 x 480 resolution, bright colors, high contrast, you can adjust the screen brightness and background grid brightness according to your needs, which is compact and portable.
2. [DDS Signal Generator] Built in DDS signal generator, supports 14 kinds of functional signals, cursor measurement function, manual measurement of period, frequency and voltage. Built in high voltage protection module, can withstand up to 400V continuous voltage, no need to worry about burnout.
3. [One Key Automatic] Highly efficient one key automatic, you can display the measured waveform without tedious adjustments, and save the waveform with one key. Equipped with a USB interface, which can be connected to a computer, and convenient for secondary analysis.
4. [1GB Storage Space] Built in 1GB storage space, screen catch and waveform storage functions, can store up to 1000 screenshots and 1000 sets of waveform data, so you can use it with confidence.
5. [FFT Display Function] With FFT display function, you can analyze the signal spectrum characteristics, for Lissajous graphic display function can be used to determine the amplitude, frequency and phase contrast of the two sets of signals.
6. [Multifunction] A combination of oscilloscope and signal generator, real time sampling rate is 1GSas, 100MHz x 2 analog bandwidth, full signal frequency step is 1Hz, supports 14 standard function signals and a customizable chopper signal. The chopper output device intercepts part or all of the complex signals measured by the oscilloscope as the output signal of the signal generator, and can store up to 1000 custom pick off signals.
Specification:

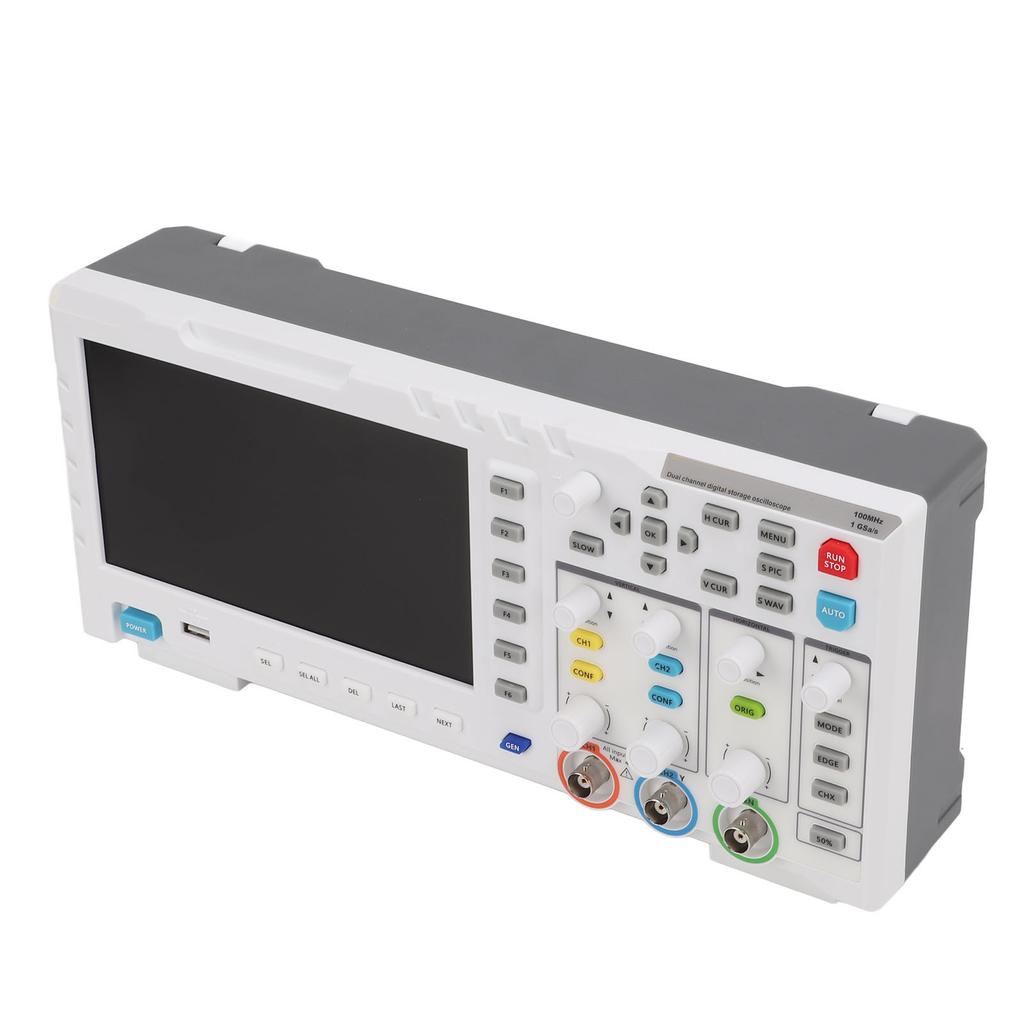

Item Type: Digital Oscilloscope
Material: ABS
Model: 1014D
Analog Bandwidth: 100MHz
Number of Channels: 2 channels
Size：38*21*12cm
Maximum Real Time Sampling Rate: 1GSas
Vertical Sensitivity: 50 mVdiv~500 Vdiv
Horizontal Tme Base Range: 50Sdiv~10nSdiv
Maximum Test Voltage: 40 V (1X probe), 400 V (10X probe)
Storage Depth: 240Kbit
Input Resistance: 1M Ohm
ADC Accuracy: 8bits
Coupling Mode: AC DC
Trigger Mode: Single, normal, automatic
Trigger Edge: Rising edgefalling edge
External Trigger Voltage: 0~40 V
Screenshot: 1000
Waveform Storage: 1000
Measurement: 12 types
Generator: Support
Signal Type: 14 kinds
Intercept Output: Support
Expansion Port: USB picture exportFeatures:
1. Built in DDS signal generator, support 14 kinds of functional signals
2. Catch output signal function, can store up to 1000 catch signals
3. Targeted highly intelligent decoding algorithm, unlimited encoder life, intelligent antiburn function, 1X can withstand up to 400V withstand voltage
4. With 100MHz x 2 analog bandwidth and at 1GSas sampling rate (1X = 5MHz, 10X = 100MHz)
5. Fully laminated 7 inch 800 x 480 resolution color TFT LCD display, with bright colors and high contrast
6. High measuring voltage range: 1X can measure 0~40V, 10X can measure 0~400V
7. Up to 12 parameter measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty, Time+, Time, Period
8. Cursor measurement function: convenient for manual measurement of period and frequency voltage
9. Complete trigger function (single, normal, automatic), and freeze the waveform display at any time (pause function)
10. Equipped with high efficiency one key automatic, one key waveform storage and screenshot functions
11. Built in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data
12. Powerful waveform image manager, supports thumbnail browsing, viewing, detailed viewing, page turning, deletion, and waveform zoom in, zoom out, and move
13. Equipped with a USB interface, which can be connected to a computer, and share screenshots with users to the computer, which is convenient for secondary analysis
14. For Lissajous graphics display function can be used to determine the amplitude, frequency and phase contrast of the two sets of signals
15. FFT display function, can analyze the frequency spectrum characteristics of the signal, memory technology, waveform refreshes screen does not flicker
16. With screen brightness adjustment function and background grid brightness adjustment function, it is convenient to carry
.
Package List:
1 x Oscilloscope2 x USB Data Cable1 x Clip Cable2 x Probe1 x Screwdriver8 x Plastic Ring2 x Plastic Cover2 x English Manual
