Feature:
1. Over Voltage and Low Speed Protection: The automatic voltage regulator board of diesel brushless generator has over voltage protection function and low speed protection function.
2. Excitation Resistance and Single Phase: The excitation resistance of the generator AVR board has a minimum value of 15Ω, a frequency range of 50 to 60Hz, and universal single phase.
3. Current: The brushless generator automatic voltage regulator has a continuous current output of 4A, allowing 75A instantaneous current for 10 seconds.
4. Adjustable Voltage Range: The brushless generator automatic voltage regulator board has an adjustable voltage range and high voltage stability.
5. Excitation Output Voltage: The excitation output voltage of the automatic voltage regulator of the generator has an input voltage of 207VAC and a maximum output of 90VDC.
Specification:

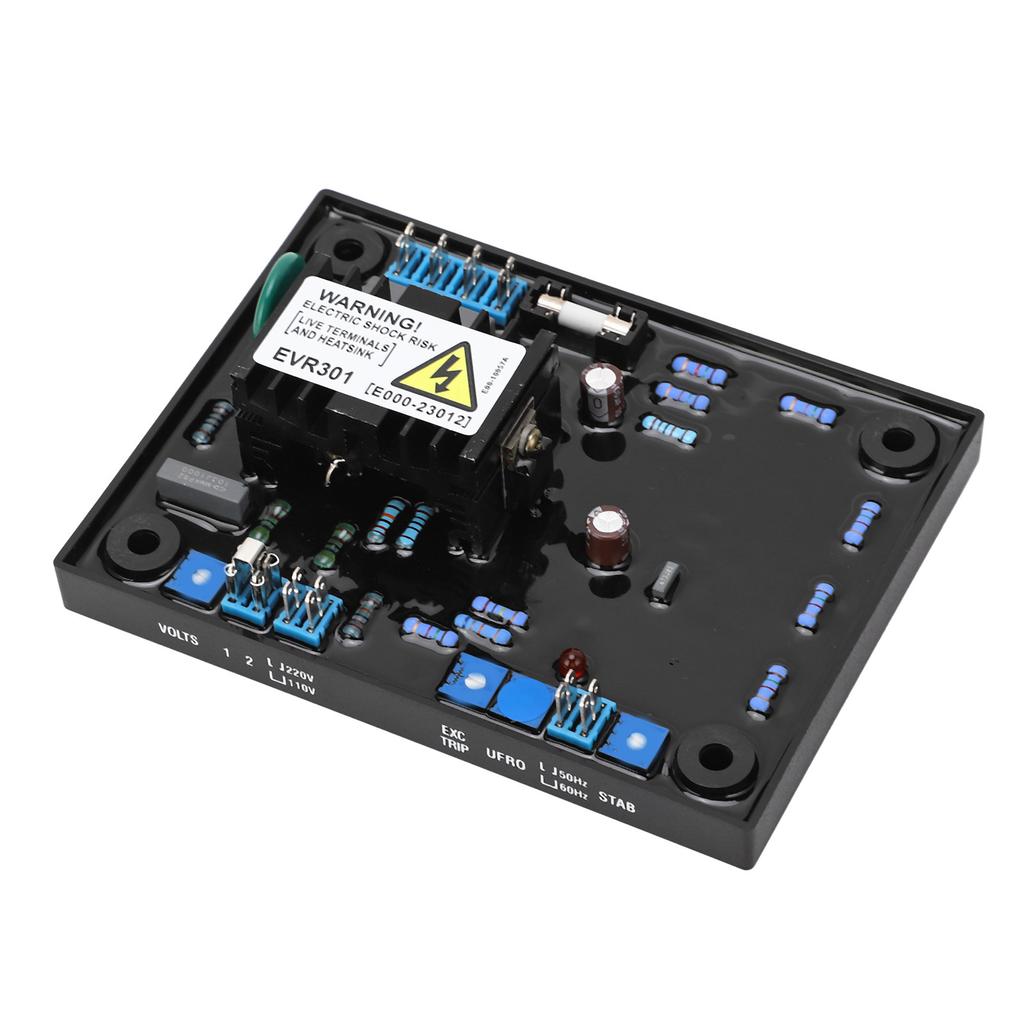

Item Type: Diesel Brushless Generator Voltage Regulator
Material: ABS
Voltage Range: 85-125VAC or 170-250VAC can be selected by jumper wire
Frequency Range: 50-60Hz (universal) single phase
Excitation Output Voltage: Input voltage 207VAC, output maximum 90VDC
Current: Continuous output of 4A, allowing 75A instantaneous current for 10 seconds
Excitation Resistance: Minimum value of 15Ω
Steady State Voltage Adjustment Rate: ±1.0% (within 4% engine speed variation)
External Voltage Regulation: External resistor 1KΩ 1W, adjusting range: ≥±5%
Starting Excitation Voltage: 3.5VAC AC at the AVR input
Low Frequency Protection Setting Protection Point: 93% of rated frequency
Slope: 170% at 30Hz
EVR301V: Protection inflection point 84% of the rated frequency
Thermal Drift: AVR ambient temperature change 40°C, the drift value of 1%
Vibration:
50mm/s at 20-100Hz
3.3g at 100Hz-2kHz
Relative Humidity: 95% at 0-60°C
Operating Temperature: -40°C-+70°C
Package List:
1 x Diesel Generator Automatic Voltage Regulator
